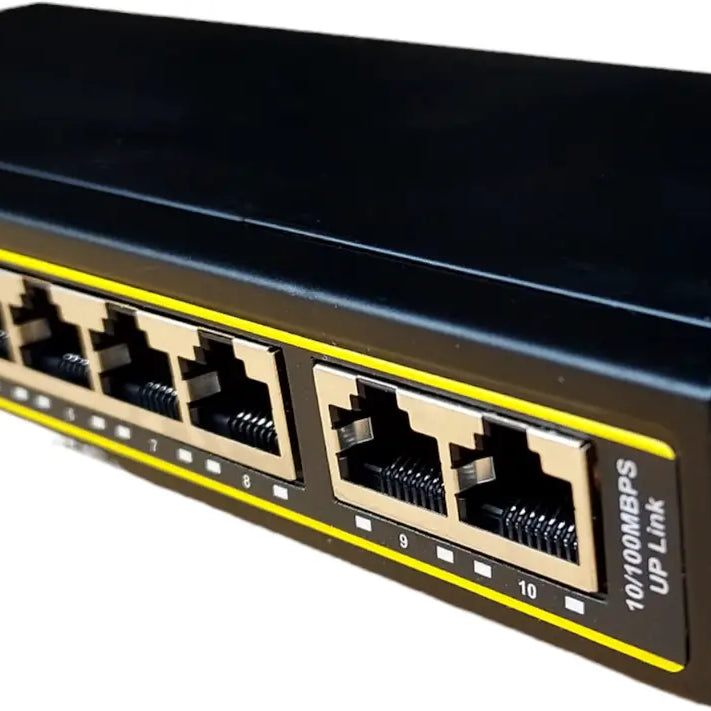

The 8 Port POE Switch(FYR-82FG ) provides 8-port 10/100/1000 Mbps IEEE
802.3af/at Power over Ethernet with a total of 130 watts of POE budget, which is an
ideal solution to fulfill the demand of sufficient PoE power for network applications. It
is able to drive 8 IEEE 802.3af/at compliant powered devices. It has 2 Uplink
Port(10/100/1000).
8×10/100/1000 Base-TX PoE ports and 2×10/100/1000 Base-TX uplink ports
Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
Internal 52VDC/2.3A Power Adapter
Support desktop and wall mount installation
Plug and play, no need to configure
Support two operating modes extend with VLAN isolated, default configuration
Support 6kv surge protection
www.fyber.co.in
Technical Specifications
Feature Specification
Power Supply Power Adaptor, 52V/2.3A
PoE Port 8×10/100/1000 Mbps
Uplink Port 2×10/100/1000 Mbps
Network Standard IEEE802.3, IEEE802.3u, IEEE802.3X
PoE Standard IEEE802.3af/at
Backplane Bandwidth
Forwarding Capacity
20Gbps
29.76Mpps
Packet Buffer 2M
MAC Address List 4K
Forward Mode Store-and- forward
Default: All port can be communicated freely,link speed is 10/100Mbps
Mode Switch Extend: Port 1-8, Speed 10Mbps, Maximum transmission distance up to 250 meters;
Port 1-8 are isolated respectively, but can communicate with Port 9-10
PoE Power Mode End-span 1/2(+),3/6(-)
PoE Power Budget Each port ≤30W Whole device≤130W
Surge Protection: 4KV (common mode),10/700us IEC61000-4-5
Protection ESD Protection: Contact Discharge: ±4KV
Air Discharge: ±6KV Standard: IEC61000-4-2
Operating Temperature -20~55 5%-95% (non-condensing)
Storage Temperature -40~75 5%-95% (non-condensing)
Dimensions (L*W°H) 220mmx100mmx26mm
Weight 650g
Mean time between failures (MTBF) 50000h
